This stage is about making the raw 3D print primer‑ready. We’ll remove all support material, clean up support scarring and drooping overhangs, permanently join multi‑part prints and fill their seams, and lightly scuff the surface so primer and adhesives can bite. Plastic is slick — proper tooth now prevents peeling later. This is the one time you can be assertive with tools; minor scratches will be buried under filler and primer.

When you’re done, a primer‑ready part will:

  • Have all support material removed, including nubs and breakaway remnants
  • Have support scarring and overhang droop knocked down and blended
  • Be permanently joined (if multi‑piece) with seams filled and flush
  • Be uniformly scuffed to promote adhesion without erasing intentional detail

Tip: If you haven’t already, check the Print Settings Guide. A few slicer tweaks can make supports break away cleanly and save you a lot of cleanup work.


Step 1 – Remove large supports

Purpose

Clear away all major support structures without damaging the model surface, leaving only shallow nubs that can be safely blended later.

Tools & materials

  • Flush/precision nippers (fine jaws)
  • Hobby knife with fresh blade
  • Small chisel or narrow wood/razor chisel (optional)
  • Needle‑nose pliers for controlled pulling
  • Heat source for stubborn supports: hair dryer or low‑setting heat gun
  • Painter’s tape to protect adjacent details
  • PPE: eye protection, cut‑resistant gloves
  • Trash bin or tray to keep chips contained

Safety notes

  • Supports can release suddenly; always cut toward open air, not toward your other hand or the model.
  • Use minimal heat and keep it moving; overheating can warp thin walls and release fumes.
  • Wear eye protection; brittle PLA can snap and eject shards.

Step‑by‑step

  1. Stabilize the part — Support the model on a towel or foam so it doesn’t bounce while cutting.
  2. Start at the edges — Snip away free‑hanging support towers first to reduce leverage forces on attachment points.
  3. Cut, don’t pry — Place flush cutters flat to the model and cut at the support interface. Make multiple small cuts instead of one big twist.
  4. Tackle fused spots — If the interface is welded, score around it with a hobby knife, then nibble it away in thin slices with nippers.
  5. Use gentle heat for PETG/ABS — Warm stubborn areas slightly, then cut; warm plastic cuts cleaner and is less likely to chip.
  6. Protect detail — Mask delicate edges with painter’s tape; it provides a visual boundary and helps prevent accidental slips.
  7. Finish to nubs — Leave a thin, safe nub rather than risk gouging. You’ll level these in the sanding/scuffing pass.

Technique callouts

  • Tree supports — Clip branches progressively back toward the trunk; avoid twisting the trunk off in one go.
  • Lattice/line supports — Score the interface line with a knife, then peel in narrow strips while snipping the attachments.
  • PLA — Brittle; prioritize cutting over bending to prevent chips.
  • PETG — Ductile; slight warming reduces stringing and tearing. Cut rather than pull to avoid whitening.
  • ABS — Tolerates heat; brief warming helps clean breaks, but watch for softening on thin features.

Common mistakes to avoid

  • Prying or twisting large sections — can tear out surface layers or details.
  • Cutting past flush — gouges require deep filling and can telegraph through paint.
  • Overheating — warps thin walls and rounds crisp edges.

Checkpoint: All major supports are removed. Only shallow, controllable nubs remain, no gouges or torn details, and thin features are intact.


Step 2 – Joining & Assembly

If your print came off the build plate as a single piece, you can skip this step and head straight to hardware or filling.

For larger or more complex props, you’ll often have multiple sections that need to be joined into one seamless, solid piece. The goal here is to get the parts into alignment, join them with strong bonds, and prepare the seams so that they will disappear once we start filling and finishing.




1. Dry-fit first

Before using any glue or welding tools, put the pieces together exactly as they’ll be assembled. Check how the edges meet, make sure there are no gaps or overlapping layers, and see if the parts naturally want to align or if they fight you.

2. Correct the fit

If the pieces don’t line up during your dry-fit, don’t force the joint — take a moment to diagnose and correct the cause. Here are practical steps you can follow:

  • Inspect the mating surfaces – Look for burrs, support remnants, or high spots. Often a quick pass with a hobby knife, flush cutters, or a needle file removes the interference.
  • Trim & sand – Carefully trim any fused layers and sand the mating edges with a sanding block or sandpaper (start coarse, finish fine) until the faces sit flush.
  • Use shims or packing – Thin card, tape, or PTFE film can act as temporary shims to see how small spacing changes affect alignment and to hold geometry while you plan a permanent fix.
  • Gentle heat forming – For slight warps, apply controlled heat to the distorted area (hair dryer or low-setting heat gun) and then clamp to shape while cooling. Work slowly and cautiously — over‑heating can deform details or release harmful fumes. Use gloves and ventilate the area. Test on a scrap if unsure.
  • Add mechanical registration – If weak registration is the root cause, drill small pilot holes and add alignment pins, dowels, or tabs to guarantee repeatable positioning during bonding.
  • Use clamps or a jig – Create a simple jig or use clamps with soft pads to hold parts precisely while you tack glue or weld short sections at a time.
  • Plan for filling or reprinting – If the misalignment is minor and only cosmetic, you can proceed and remove the visible step later with filling and sanding. If the fit is structurally wrong (large gaps, mismatched features), reprint the offending piece with adjusted tolerances, added registration keys, or a different orientation.
  • When in doubt, re-evaluate the model – Multiple alignment problems often mean the CAD/slice orientation or scale needs adjusting. Fixing the model or slicer settings and reprinting saves time compared with fighting a fundamentally wrong part.

Checkpoint: The pieces either fit snugly with even seams and no visible twist or gap when viewed from multiple angles, or you have a clear, reversible plan (shims, clamps, pins, or controlled heat) in place to bring them into correct alignment before permanent bonding.


3. Choose your joining method

Your joining technique depends on the material, the stress the joint will take, and how clean you need the seam to be:

  • Plastic welding – Ideal for PETG or ABS. This method fuses the pieces into a single solid part. Apply heat and pressure along the seam so the plastic flows together, then smooth over the joint. Best for load-bearing areas.

  • Cyanoacrylate (CA) glue – Fast, strong, and easy. Great for smaller parts or quick assembly, but can be brittle if the joint takes repeated stress.

  • Two-part epoxy – Slower curing but extremely strong. Works well if you need time to position parts before the bond sets.

  • Mechanical reinforcement – Hot staples, small screws, or pins can add hidden strength in high-stress spots.


4. Bond the pieces

Work in sections if your seam is long. Apply your adhesive or welding heat to a short stretch, join it, secure it with tape or clamps, then move to the next section. This keeps alignment tight all the way through.

If you’re welding, be careful not to overheat, you want the joint to melt together, not collapse. For glues or epoxy, resist the temptation to move the joint before the full cure time.

Success check: The seam feels solid under gentle pressure, and the pieces hold alignment without tape or clamps.


5. Reinforce if needed

Some props, especially ones with moving parts or ones that get handled a lot, benefit from extra reinforcement. For example, embedding a hot staple along the inside of the seam adds incredible strength without affecting the exterior.


When Step 2 is complete:
Your parts are securely joined, perfectly aligned, and ready for hardware or surface prep. Any small gaps or unevenness will be filled in the next steps, but there should be no structural issues left to solve.


Hardware & rigging has moved to its own guide: Hardware & Rigging — install, test, and blend attachments.

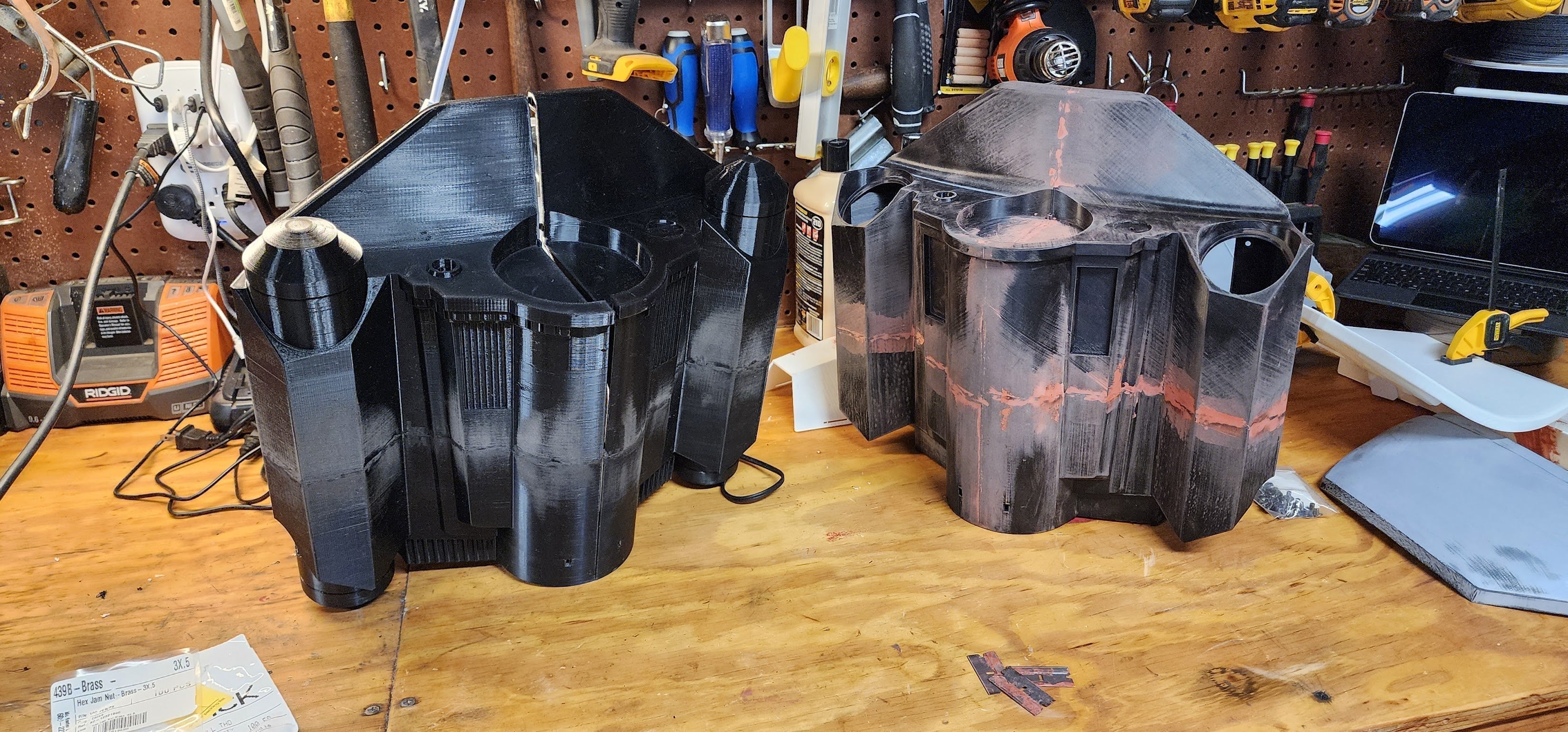

Step 3 – Filling Imperfections

Purpose

Hide seams, nicks, and layer artifacts by applying thin, controlled filler that sands clean and feathers invisibly into the surrounding plastic.

Tools & materials

  • Glazing & spot putty (solvent‑based) or lightweight finishing putty
  • Small spreaders/applicators (plastic squeegee, silicone spatula)
  • Masking/painter’s tape (to define fill boundaries)
  • Sanding papers: 220, 320, 400 grits
  • Rigid and flexible sanding blocks; needle files for tight spots
  • Scribe or hobby knife (to reopen panel lines/details after sanding)
  • Raking light or flashlight for inspection
  • PPE: nitrile gloves, eye protection; ventilation/respirator per product label

Safety notes

  • Most glazing putties off‑gas solvents. Work in a ventilated area and avoid skin contact.
  • Test on scrap if unsure; heavy solvent exposure can soften thin PLA walls.
  • Allow full cure before sanding to prevent clogging paper and smearing.

Step‑by‑step

  1. Prep the surface — Knock down high spots and loose fuzz. Wipe dust with a clean, dry cloth.
  2. Tape for control — For deeper fills or seams, border the area with tape to limit spread and reduce sanding footprint.
  3. Apply thin — Using a small spreader, press a thin layer across the defect at 45° to the seam. Aim to fill just the void, not build a mound.
  4. Feather edges — Pull the spreader long and shallow to blend edges into bare plastic.
  5. Cure fully — Wait the manufacturer’s time (often 15–45 min for glazing putty) until it’s firm and non‑gummy.
  6. Block sand — Sand 220 → 320 using a hard backer in straight, cross‑hatch strokes. Keep pressure light to avoid creating a dip.
  7. Reassess under raking light — Repeat thin fill/sand cycles as needed. Reopen any buried panel lines with a light scribe pass.
  8. Finish to 400 — A quick final pass prepares the area for primer without polishing it slick.

Technique callouts

  • Seams — Work perpendicular with a rigid block so you don’t round over the joint.
  • Pinholes — Smear putty across the area, then scrape nearly clean; the voids remain filled without build‑up.
  • Engraved/raised details — Mask edges with tape before filling; remove tape before full cure to avoid a hard ridge.

Common mistakes to avoid

  • Applying thick globs — increases shrinkage and cure time; use multiple thin passes.
  • Sanding by fingertip — creates divots; always use a backer.
  • Sanding before cure — smears, clogs paper, and weakens the repair.

Checkpoint: Seams and defects are flush by touch, edges remain crisp, and the filled area feathers smoothly into bare plastic with a uniform 320–400 grit tooth.


Step 4 – Selective Sanding

Purpose

Level problem areas (seams, drooping overhangs, elephant’s foot, rough patches) while preserving crisp edges and fine detail.

Tools & materials

  • Sandpapers: 120, 180, 220, 320 grits
  • Rigid sanding blocks, foam blocks, and small contour sticks
  • Needle files; deburring tool (for controlled edge cleanup)
  • Pencil for guide coat; raking light/flashlight
  • Dust brush or microfiber cloth
  • PPE: dust mask/respirator and eye protection

Safety notes

  • Plastic dust is irritating; wear a mask and vacuum/brush dust frequently.
  • Avoid aggressive power sanding on thin shells to prevent heat warping.

Step‑by‑step

  1. Mark and inspect — Use a pencil to shade defects; they act as a guide coat.
  2. Start coarse, stay targeted — Use 120–180 only on the defect with a rigid backer. Keep strokes straight and cross‑hatched.
  3. Refine the area — Move to 220, then 320 to remove scratch marks. Blend slightly beyond the defect, not the whole panel.
  4. Protect edges — Use a hard block on edges and raised features; avoid rounding by applying light pressure and stopping early.
  5. Re‑check under raking light — Repeat lightly as needed. If a low spot persists, return to Step 3 for a thin fill instead of over‑sanding.

Technique callouts

  • Overhang droop — Skim with a file first to knock the sag flat, then sand with a block.
  • Elephant’s foot — Chamfer lightly with a file, then square with a block to restore the edge.

Common mistakes to avoid

  • Finger sanding (creates waves and low spots).
  • Skipping grits (leaves deep scratches that telegraph through primer).
  • Over‑sanding edges and details.

Checkpoint: Defects are leveled, edges remain crisp, and the surface has an even 220–320 finish with no visible flat spots or troughs.

With the surface shaped and uniform, you’re ready for primer — clean the part, tack off the dust, and apply a light first coat to act as a guide for final perfection.
