Built for wet sanding full helmets and armor sets while keeping the slurry contained, minimizing water usage, and avoiding disposal down the drain.

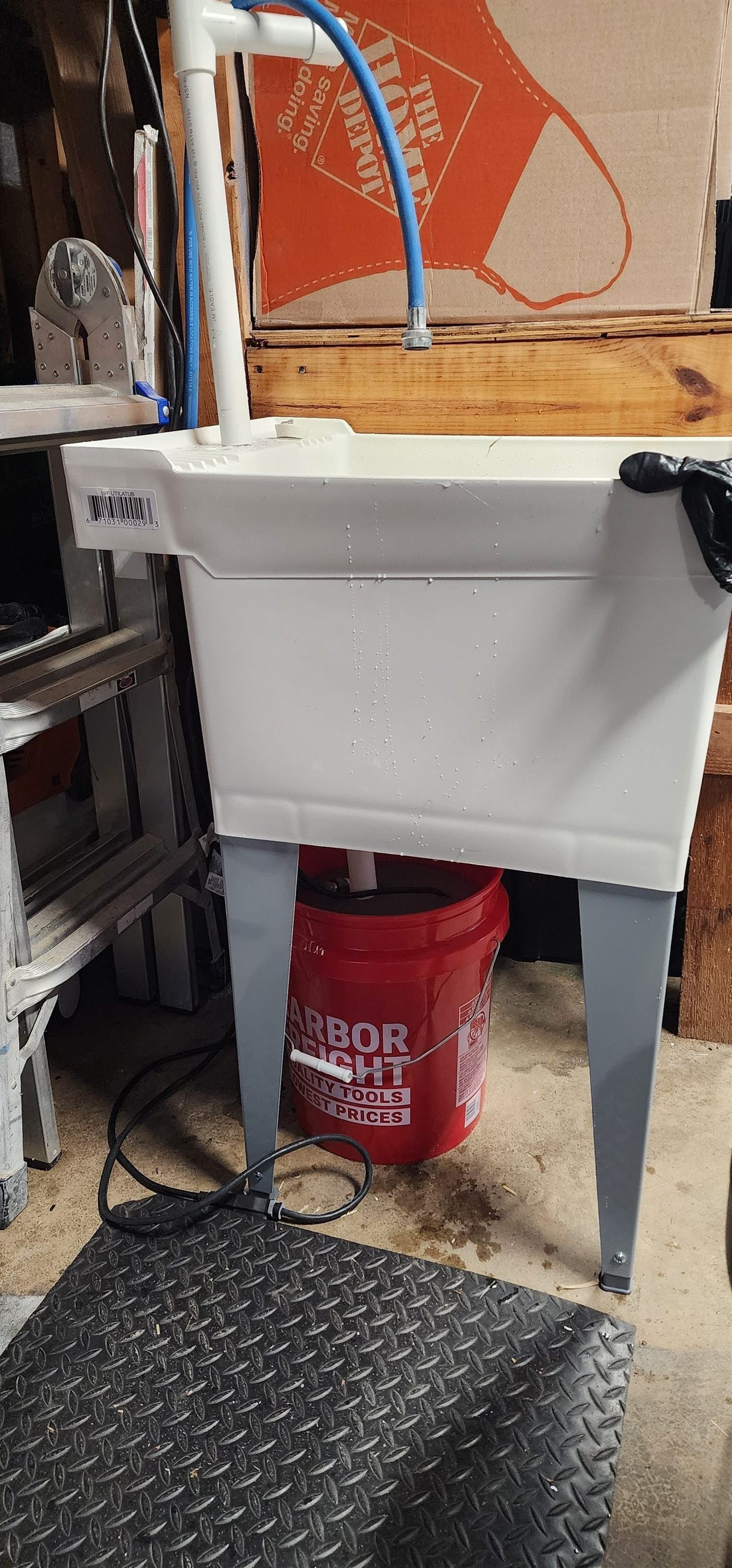

The wet sanding station as it sits in the shop. Utility sink on its stand, 5-gallon bucket below the drain, pond pump in the bucket sending water back up to the basin.
Wet sanding is how I smooth primer and read guide coat without the paper loading up every few strokes. Water floats the slurry off the abrasive as you work, so a single sheet of 400 grit lasts a lot longer than it would dry. It is the main sanding step in my primer and guide coat workflow for smoothing 3D prints.
After a couple of years of wet sanding out of spray bottles and dunk buckets, I built a small recirculating station that runs water across the part continuously and catches the mess in one place. This guide covers what I run in the shop and how to put one together in an afternoon for about $125 to $175.
It is a freestanding plastic utility sink on its own legs with a 5-gallon bucket tucked underneath the drain. A small submersible pond pump sits at the bottom of the bucket and pushes water up through a vinyl hose into the basin. The drain dumps straight back into the bucket, so the same three gallons (~11 L) of water cycle through for the entire session.
The reason I built it this way is simple. I can wet sand a full helmet without carrying buckets of dirty water across the shop. Water runs across the part the whole time I am sanding, so I never put the sandpaper down to spray or dunk. The basin catches almost all the slurry and keeps the workbench clean.
It also stays plumbed permanently. When it is time to sand I plug in the pump and start, instead of staging gear every time. The footprint is real, though. A utility sink takes up about 24 by 24 in. (60 by 60 cm) of floor. It earns that space if you wet sand regularly. If you only do the occasional helmet, I'd start with one of the lower-cost setups at the end of this guide.
If you have a utility sink already plumbed within hose reach, you can skip the pump and bucket entirely and run a slow stream from the tap. Everything downstream of that is the same.
Here is what is in mine, with the example specs that worked. Approximate cost is $125 to $175 depending on what you already have on the shelf. The utility sink alone was around $99 from the hardware store; the pump, hose, and fittings make up the rest.
| Item | Example |
|---|---|
| Utility sink with stand | Freestanding plastic sink with legs that clear a 5-gallon bucket |
| Submersible pond pump | 200–400 GPH, the kind sold for tabletop fountains |
| Vinyl hose | 1/2 in. ID, about 4 ft |
| Bucket | Standard 5 gal |
| Hose clamps | Stainless, sized to the hose ID |
| PVC elbows and tees | As needed to route the supply hose into the basin |
| Hose adapter | Threads onto the pump outlet, barb for the vinyl hose |
Affiliate disclosure: Some source links on this page are Amazon affiliate links. If you purchase through them, we earn a small commission at no extra cost to you.
Plan on 30 to 60 minutes once everything is in hand. Most freestanding utility sinks ship flat and bolt together with four legs and a basin, so the sink itself takes the longest.
Start the pump and confirm the supply is flowing steadily before you pick up the part. Rest the part in the basin and hold it under the stream so water runs across the area you are sanding. I use a sanding block and 400 grit for primer and guide coat — same grit called out in the smoothing guide. Higher grits (1200/2000/3000) belong with clearcoat and chrome, covered in those guides.
Move the paper across the part with the block flat. The running water keeps the surface clear so you can read the guide coat without stopping to wipe. To check progress, move the part fully under the supply for a couple of seconds to rinse it clean, then tilt it to the light.
What to expect on the first few passes: the guide coat smears across the high spots before it starts breaking up, usually two or three passes in. That is normal. Keep the block flat and keep moving — do not try to focus pressure on the stubborn spots, that is how you sand through to plastic.
When the basin clouds enough that you cannot see the part, let it run another minute. The bucket holds the dirty water and the pump usually pulls clearer water off the top. If it does not clear, kill the pump for a few minutes so the debris drops, then restart.
If a permanent sink is too much footprint or budget, here are the two setups I used before building this one.
Pump spray bottle. Fill a pump spray bottle with tap water and mist the part and the paper between strokes. Cost is basically zero if you have a spray bottle in the shop already. The tradeoff is hand juggling and faster paper loading, because there is less water on the surface at any given moment. I use it for touch-up sanding between primer coats and for thumb-sized greeblies at the bench, anywhere dragging out a bucket is more setup than the job is worth.
Dunk container. Any container big enough for the part with a couple inches of water and a drop of dish soap. A 5-gallon bucket handles a helmet or chestplate; a large plastic tote works for small pieces. Dip and swish the paper every few strokes. It rinses the abrasive completely, so a sheet lasts noticeably longer than with the spray bottle. The tradeoffs are carrying and disposing of the dirty water afterward, and the bench still gets splashed since you are sanding outside the container.
Will the slurry destroy the pump?
Fine primer and plastic dust pass through the impeller without issue. Larger debris is what to watch for, and that is what scooping the basin and rinsing the intake screen every few sessions handles. The pump I run has been on this station for over a year with no service beyond that.
How long does a bucket of water last in a session?
Three gallons gets me through a full helmet pass at 400 grit before the basin clouds enough that I want to swap. For a single armor piece I rarely need to change water mid-session. Heavy guide-coat work or pigmented base coat wears the water down faster.
