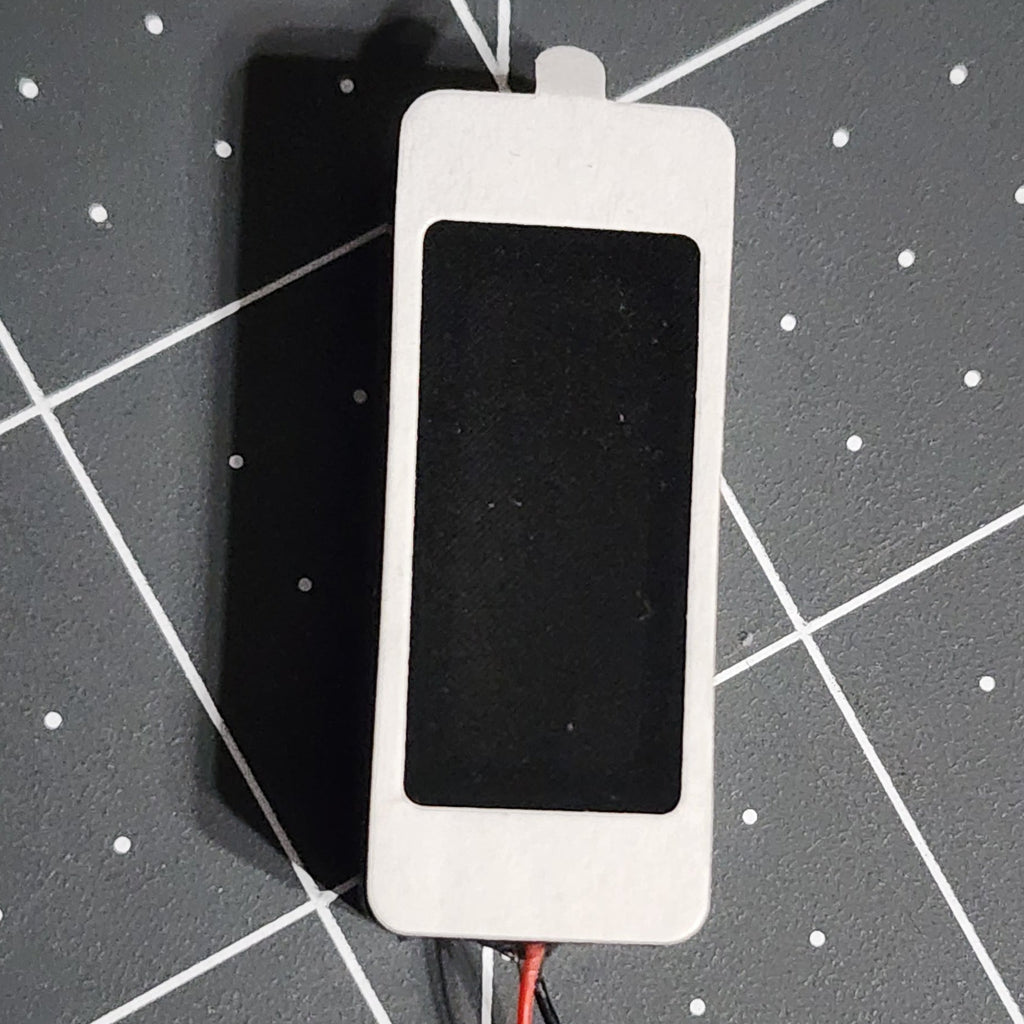

Front of the 36 x 15 mm micro box speaker with stainless frame and sealed black diaphragm window
1/6

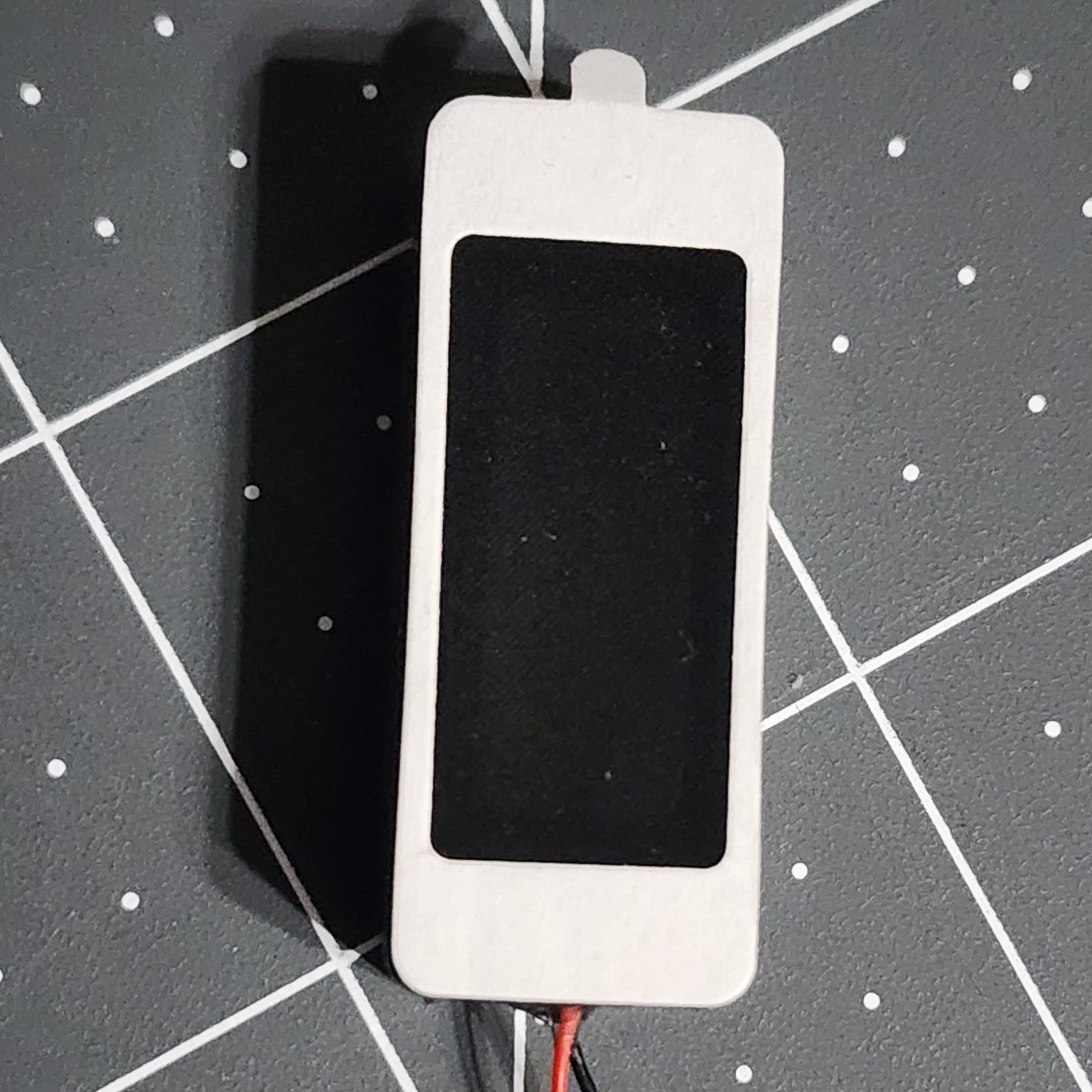

  • Front of the 36 x 15 mm micro box speaker with stainless frame and sealed black diaphragm window

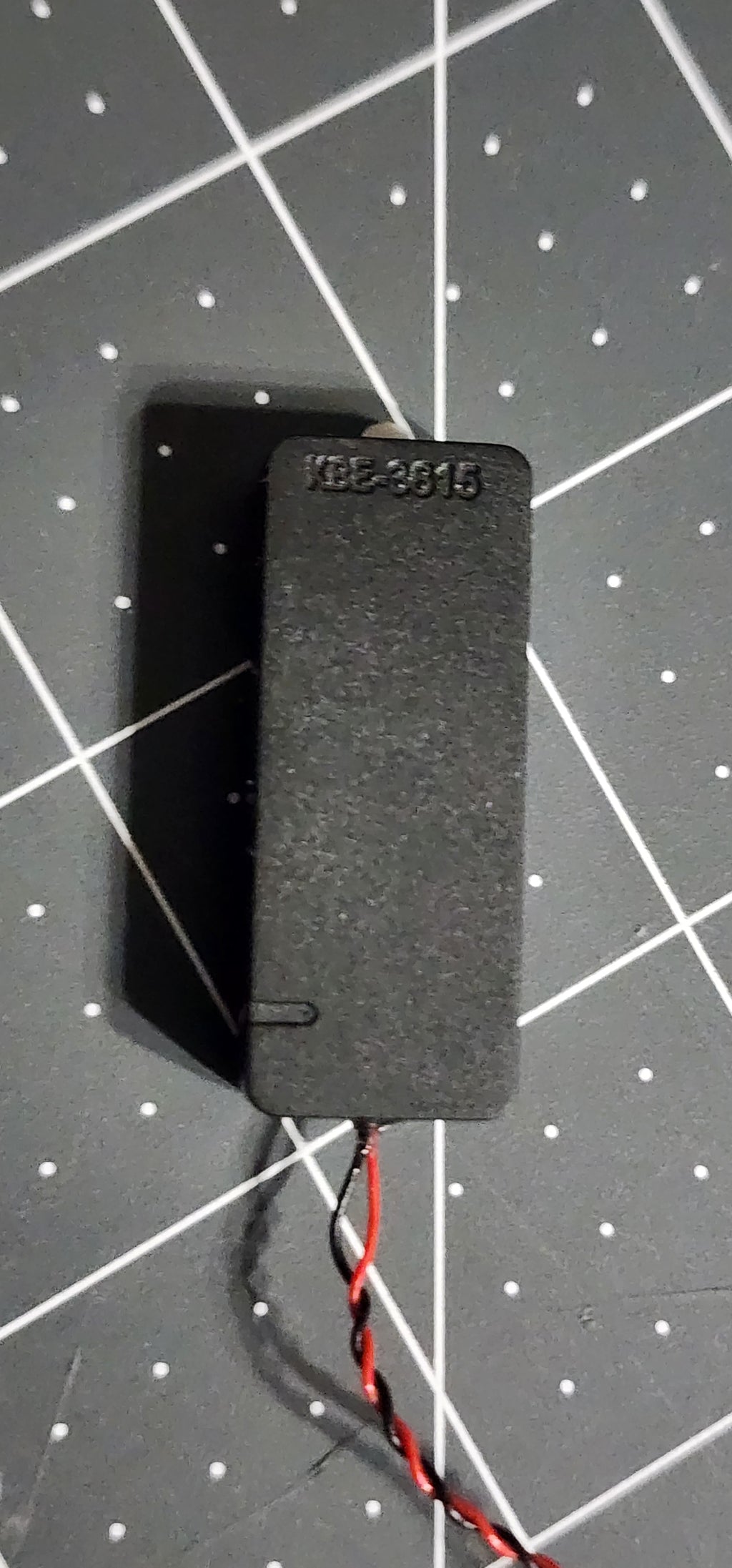

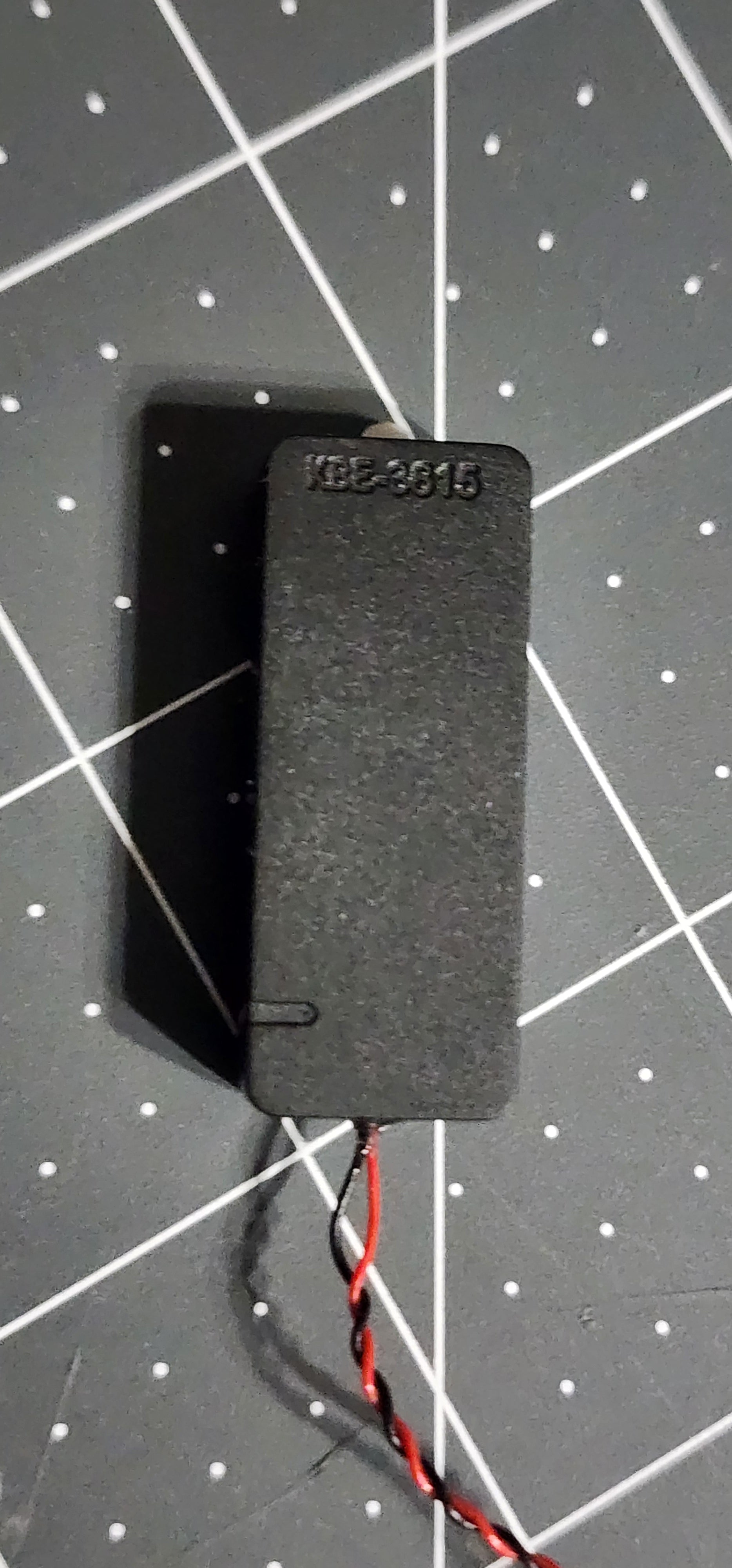

  • Back of the sealed speaker enclosure with molded KBE-3615 marking and twisted red and black leads

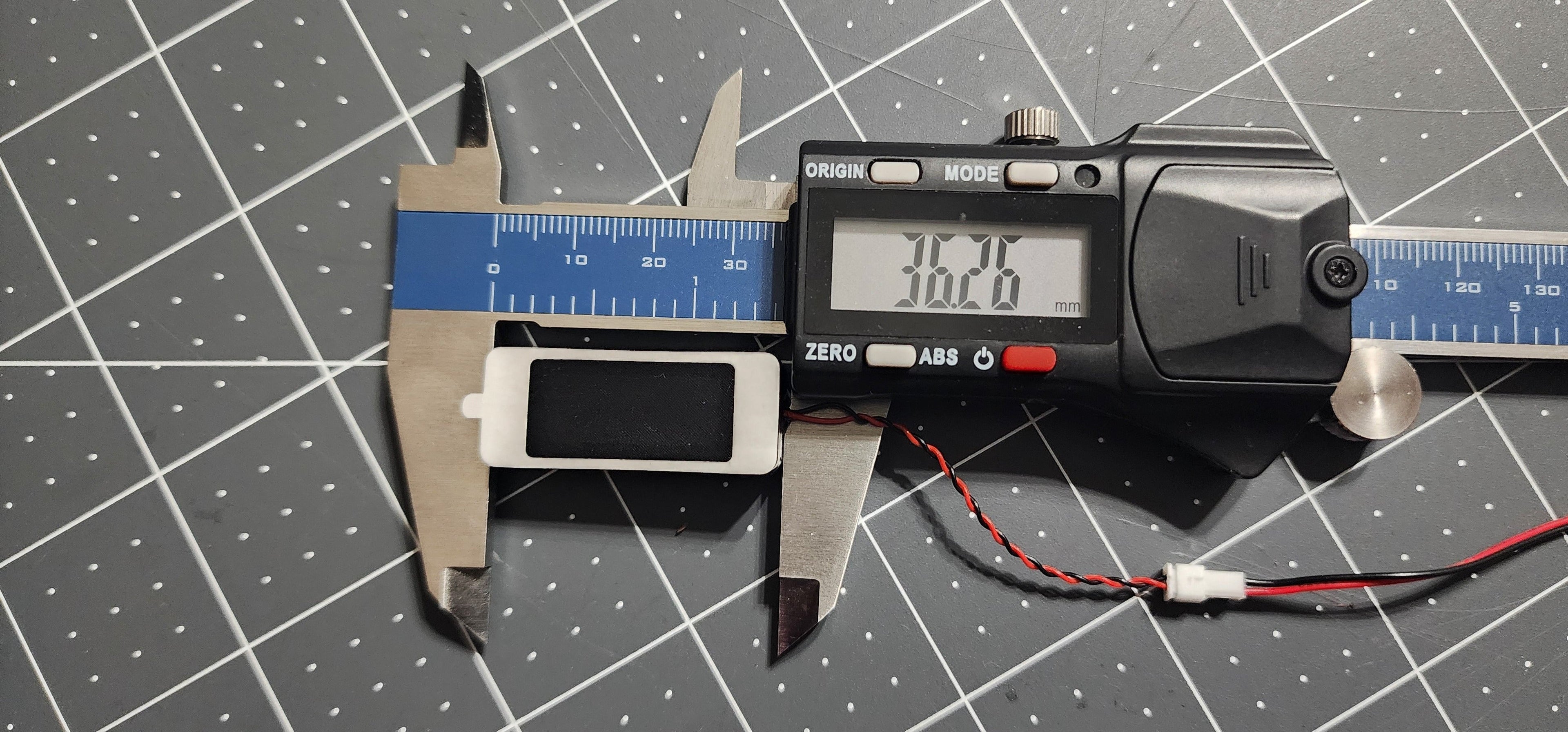

  • Digital caliper measuring the box speaker length at 36 mm, JST plug beside it

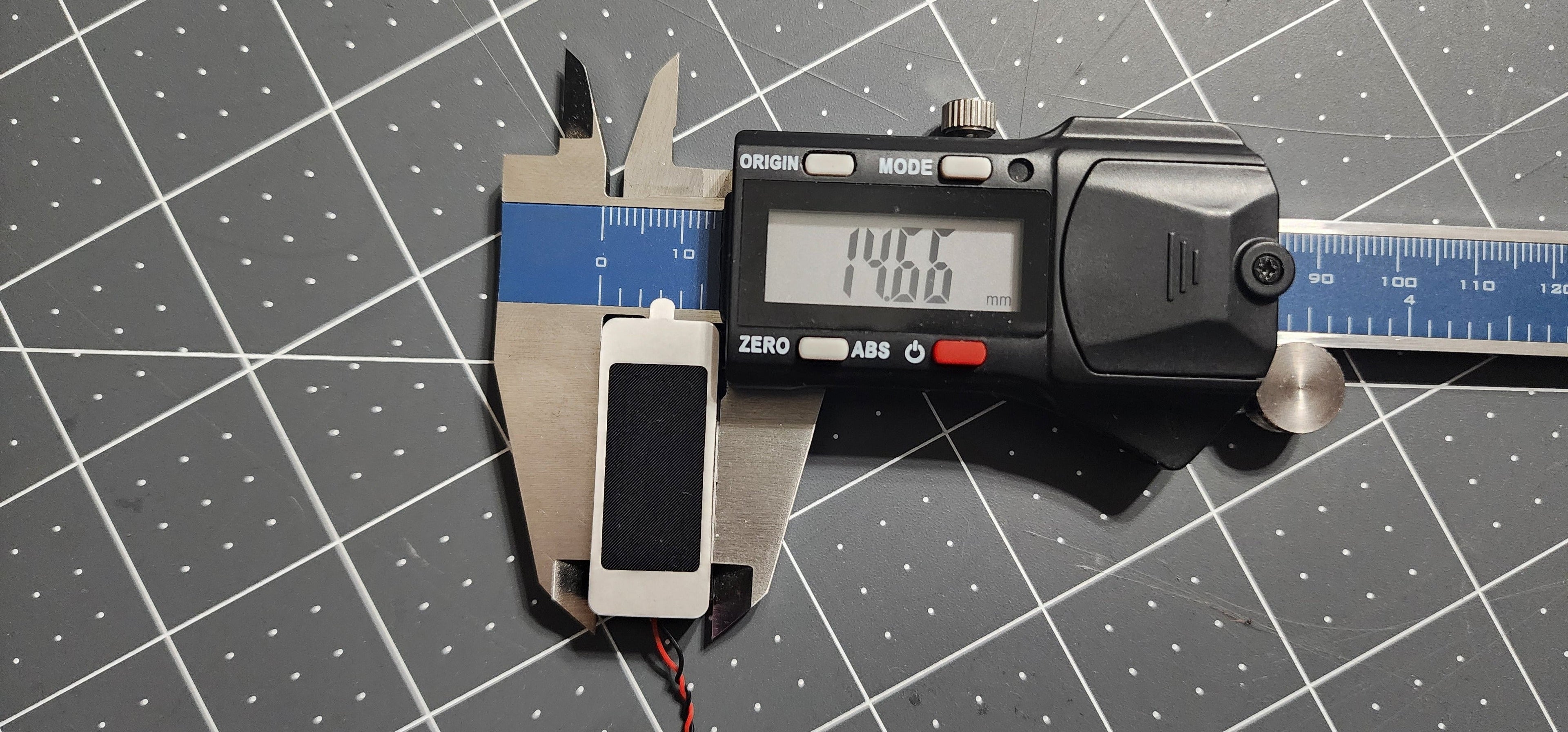

  • Digital caliper measuring the box speaker width at 15 mm

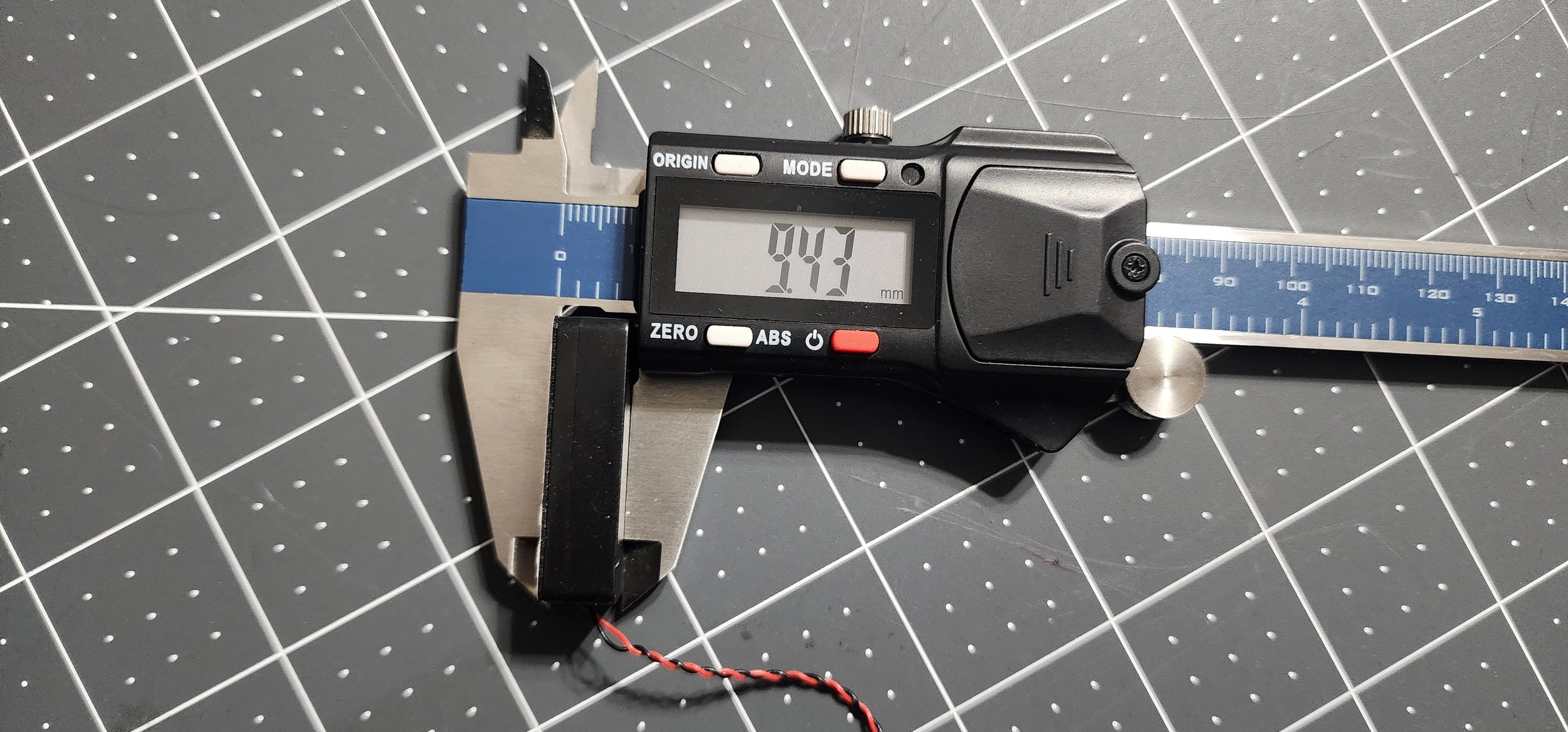

  • Digital caliper measuring the box speaker depth at 9 mm

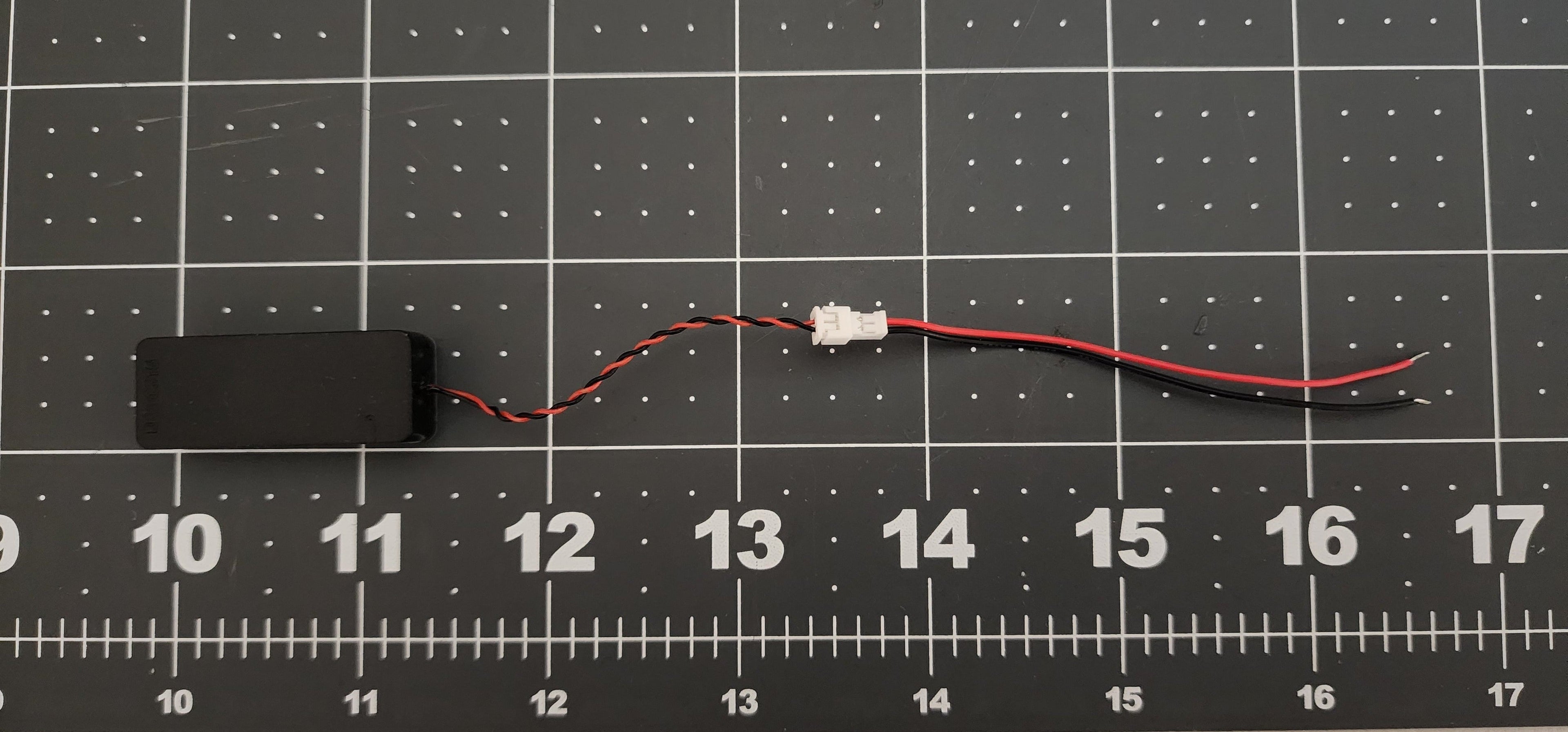

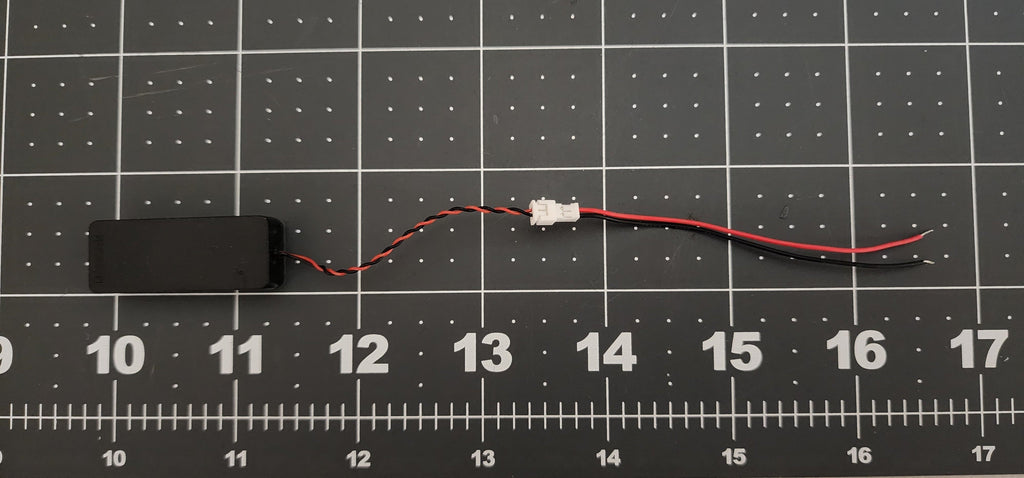

  • Micro box speaker on a ruled cutting mat showing lead length, JST connector, and included pigtail with bare leads
Micro Box Speaker 36×15 mm — 6 Ω 2 W with JST Plug (Sugar Cube Speaker)

Micro Box Speaker 36×15 mm — 6 Ω 2 W with JST Plug (Sugar Cube Speaker)
$10.00
Shipping calculated at checkout.

A micro enclosed box speaker in the "sugar cube" class, pre-wired with a JST plug — a mating JST pigtail with bare leads is included. Fits anywhere a compact sealed speaker is needed — prop and cosplay electronics, model railroad DCC sound installs, RC, and other small builds. The enclosure is already on: no baffle or speaker box to build.

Specifications

  • Enclosed "sugar cube" box speaker, 36 × 15 mm footprint, 9 mm deep, approx. 2.8 g
  • Impedance: 6 Ω ±15%
  • Rated input power: 2 W (3 W max, 1 minute)
  • Sound pressure level: 83 ± 3 dB at 3.46 Vrms / 10 cm, 2 kHz
  • Lowest resonance frequency (F0): 990 Hz ±20%; effective range F0–10 kHz
  • Operating temperature: −20 °C to +70 °C
  • Neodymium (Nd-Fe-B) magnet, PEN diaphragm, PBT frame, stainless front cap
  • Pre-wired leads terminated in a JST plug; mating JST pigtail with bare leads included

Specification sheet (PDF)

For cosplay props, models, and railroad sound installs

Same footprint class as the sugar-cube speakers used with DCC sound decoders, with the enclosure already on. Check that your decoder is rated for a 6 Ω load before wiring it in. The included pigtail wires into projects without a JST-style connector — no need to cut the speaker's plug.
