Whistling Birds Gauntlet Darts guide

Stage 03 · Front modules and gauntlet install

Assemble the front modules and install in the gauntlet.

This stage covers three things in sequence: routing and sizing the fiber optic bundle through the gauntlet nozzles, verifying alignment and finishing each dart tip with a sanded point and Beskar collar, and the final install in the gauntlet. The prop is fully functional at the end of this stage.

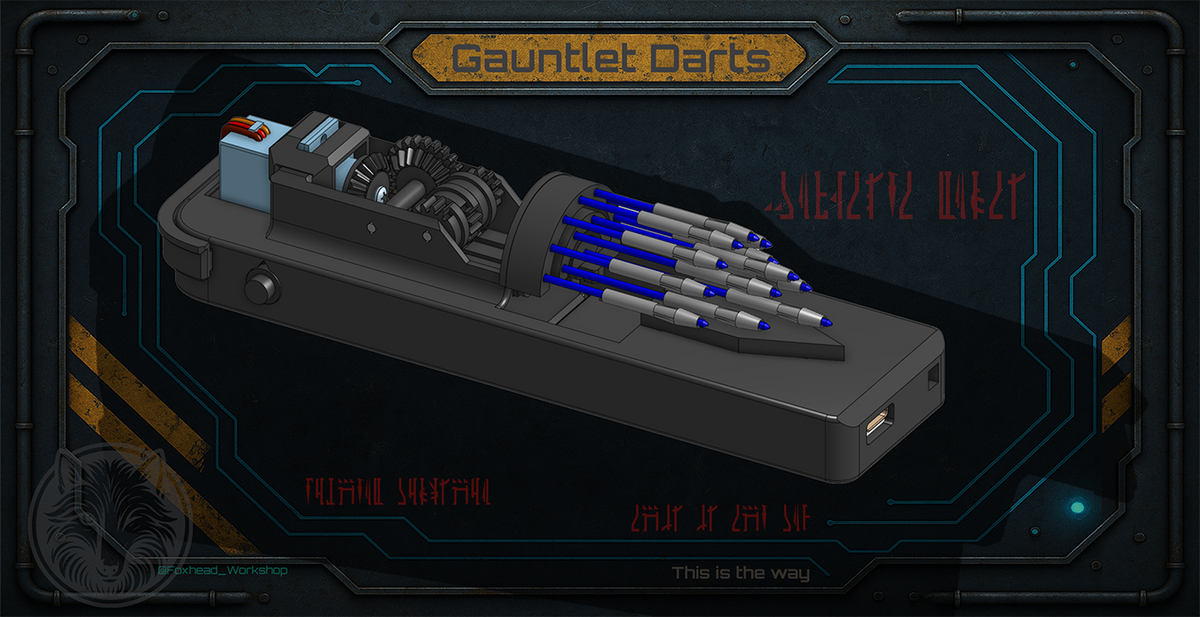

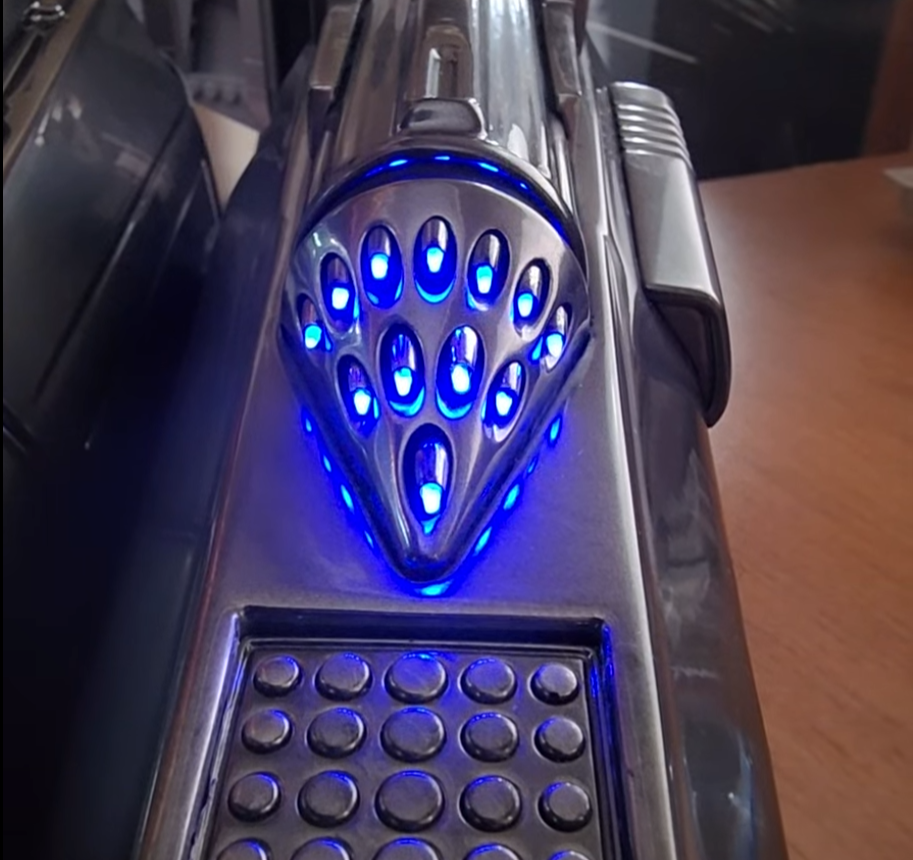

Mandalorian Whistling Birds Gauntlet Darts DIY kit components laid out

Before you start

  • Gearbox assembled and cycling clean
  • LED housing built and tested
  • Dart tip blanks printed and cleaned

You'll complete

  • Fibers routed, sized, and shaped
  • Dart tips aligned with the nozzle holes
  • Tips finished with Beskar collar and front module installed

Time & difficulty

  • 1–3 hours
  • Patience, no special tools

The fiber optics are how this kit achieves a universal fit. Small differences between designers or armor scales are absorbed by the natural flex of each strand — the fibers bend slightly without any adjustment needed. For larger geometry differences, gentle heat lets you reshape individual strands for nozzle alignment or curve the whole bundle to reduce friction. A few seconds with a heat gun or hair dryer on low sets the new shape permanently.

Exploded view of the front module showing LED housing, fiber optic, and dart tip assembly
Front module exploded view

Gearbox Mounting System

The Gearbox Mounting System uses the nozzle mount to hold the front of the gearbox at the correct height under the gauntlet nozzle, while the rear retaining clip keeps the unit centered. Both are glued to the gauntlet before any fiber-optic work — the gearbox needs a stable, repeatable mounting position before the fibers can be sized.

  1. Glue the nozzle mount to the gauntlet. Apply a bead of adhesive to the top face of the nozzle mount and press it firmly against the underside of the gauntlet nozzle. Hold until set. The mount positions the gearbox so the dart rows align with the nozzle holes — take time to get this right before the adhesive cures.
    Nozzle mount glued to the underside of the gauntlet nozzle
    Nozzle mount glued in place
  2. Dry-fit and glue the rear retaining clip. Clip the gearbox into the nozzle mount to find the natural resting position of the rear of the unit. Mark where the retaining clip sits against the gauntlet interior, then remove the gearbox, apply adhesive, and glue the clip at the marked position. The retaining clip keeps the unit centered and prevents fore-aft movement.
    Rear retaining clip glued to the gauntlet interior to center and secure the gearbox
    Rear retaining clip glued in place

Fiber Optics

The fiber optic strands carry LED light to the dart tips. Each strand is sized in the gauntlet — thread it through the nozzle first, then cut at the tip opening. One strand sets the length for the rest of its row.

  1. Insert one fiber uncut into the first hole of a housing row. Feed a single uncut fiber optic strand into the first hole of one LED housing row. Do not cut anything yet — the fiber needs to be routed through the nozzle while the gearbox is mounted to find the correct length.
    Raw uncut fiber optic strand inserted into the first hole of an LED housing row
    First fiber inserted uncut
  2. Clip the gearbox in and route the fiber through the nozzle. Thread the fiber through the nozzle opening, then hook the front of the gearbox onto the nozzle mount and press down until it clips in. The fiber is now in its final operating position. To remove the unit at any point, lift slightly at the front and push from the rear to unhook the clip — you will be doing this several times during sizing.
    Fiber optic routed through the gauntlet nozzle with gearbox clipped in
    Fiber routed, gearbox clipped in
  3. Power on and arm to find the fully extended position. Turn on the prop and use the activation magnet to arm it. With the darts fully extended, the tip of each fiber should sit at the end of the nozzle opening. This is the reference position for all cuts.
  4. Cut the first strand to length. With the darts extended and the fiber seated in the nozzle, cut it just past the tip of the opening, leaving a small amount of excess to trim during final shaping.
    First fiber optic strand cut to length just past the nozzle tip
    First strand cut to size
  5. Size the remaining strands per row. Use the first cut strand as a template to size the remaining fibers in the same row outside the gauntlet. Repeat for the middle row, then the outer row.
    Middle row fiber optic strands sized to the template length
    Middle row sized
    Outer row fiber optic strands sized to the template length
    Outer row sized
    All three rows of fiber optic strands sized and ready
    All three rows sized
  6. Heat-mold the bundle. Tape the fiber optic strands into the channels on the Fiber Optics Heat Mold tool. Apply gentle heat — heat gun, hair dryer, or hot water — to reduce the natural curl so the bundle enters the nozzle with less friction and applies less load on the servo. Check progress frequently and do not overheat.
    Fiber optic bundle taped into the heat mold tool for gentle heat shaping
    Bundle in heat mold

Dart Tips

The dart tip is sanded to a point then fitted with the printed Beskar-style collar 2 mm from the tip. The sanded end transmits the LED light directly through the fiber; the collar gives each dart its screen-accurate silhouette.

  1. Verify alignment with the nozzle alignment part. Connect the printed nozzle-alignment part to the front nozzle mount and check how each fiber-optic strand lines up with the nozzle holes for your gauntlet's designer — Chamanleon FX, Galactic Armory, and Great Ape are all supported, and the alignment model can be scaled when printed if your gauntlet needs it. If a strand misses its hole, apply gentle heat to shape the fiber for alignment before sanding, since bending can pull the tip slightly inward.
    Nozzle alignment part connected to the front nozzle mount, showing how the fiber-optic strands line up with the dart-tip holes
    Nozzle alignment part connected to the front nozzle mount
  2. Sand the tip to a point. Using 400-grit sandpaper, shape the end of each fiber into a tapered point. Sand in small rotations; check the profile frequently.
    Fiber optic strand with tip sanded to a tapered point
    Tip shaped to a point
  3. Glue the Beskar collar. Apply a small amount of super glue and slide the Beskar tip collar onto the fiber, positioning it 2 mm back from the point.
    Beskar tip collar glued 2mm from the fiber optic tip
    Beskar collar at 2 mm from tip

Final Assembly

Clip the LED housing to the outer-row push arm, tuck all wiring clear of the gear train, and install the wire cover. This is the last step before the prop is complete.

  1. Install the front module into the gauntlet nozzle. Slide the front module up into the front nozzle, being careful to ensure each dart tip goes into its correct hole.
    Front module slid up into the gauntlet nozzle with each dart tip seated in its hole
    Front module seated in the nozzle
  2. Attach the gearbox to the mounts. Slide the gearbox onto the nozzle mount at the front and into the rear retaining clip at the back so the unit sits centered and seated against both anchors.
  3. Clip the long push arm. The long push arm has a forward-pointing hook at its end. Hook it over the outer LED row, then press down and back to engage. To release, pull forward with a slight upward motion so the tab clears the hook.
    Hook on the long push arm clipped over the outer LED row — press down and back to attach, pull forward with a slight upward motion to release
    Hook clipped over the outer LED row
  4. Tuck the wires and test the cycle. Tuck and route the wires out of the way, placing the LED JST in the battery compartment to keep the LED area open. Seat the wire cover, then test the full arm/disarm range and motion to ensure the wires are not catching on anything.
    Wire cover installed over the final wiring
    Wire cover installed

Activation Magnet

With the prop fully assembled, attach the activation magnet to the hand plate. The magnet triggers the reed switch when you tilt your wrist up, arming the prop.

  1. Attach the activation magnet to the hand plate. Affix the 20×10×3 mm magnet to the back edge of the hand plate using a removable adhesive — hot glue or painter’s tape both work well. Tilt your wrist up and confirm the magnet reliably triggers the reed switch. A natural wrist-up motion should arm the prop without accidental triggering while the gauntlet sits flat.
Mandalorian Whistling Birds Gauntlet Darts DIY kit components laid out

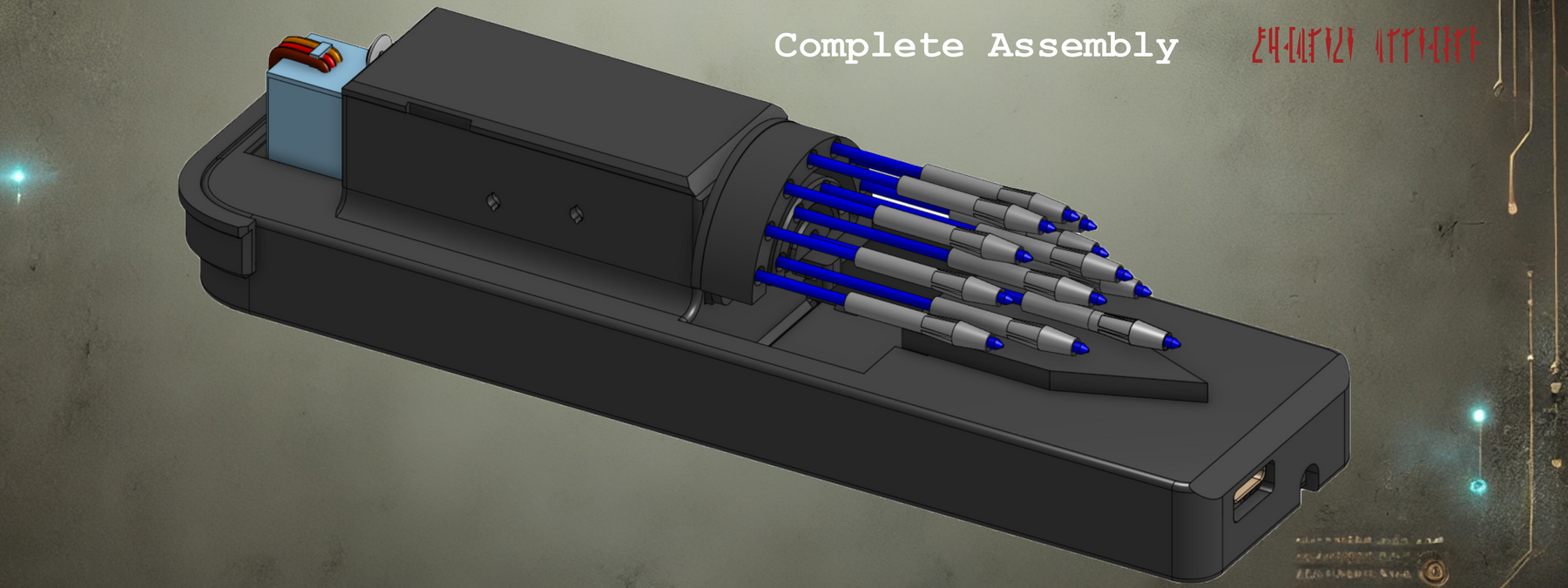

Build complete
